Technical Content
Part Image

TLD23313EPXUMA1 - Infineon

Description: LED Lighting Drivers

Download TLD23313EPXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

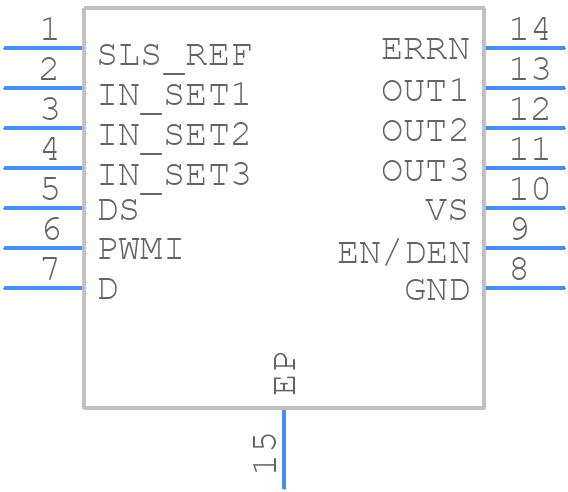

Symbol
TLD23313EPXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLD23313EPXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-14-22
click to zoom
3D Models
TLD23313EPXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSDSO-14-22
click to zoom

TLD23313EPXUMA1 Details

  • Manufacturer Part Number:

    TLD23313EPXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.78

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2A

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    9

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    SSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TLD23313EPXUMA1 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal via array can help to dissipate heat efficiently.
  • To ensure EMC, it is recommended to follow good PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, the device should be placed in a shielded enclosure and connected to a low-impedance ground plane.
  • The recommended operating voltage range for the TLD23313EPXUMA1 is 5.5 V to 40 V. Operating the device outside of this range may affect its performance and reliability.
  • To protect the device from overvoltage and overcurrent, it is recommended to use voltage regulators, current limiters, and overvoltage protection (OVP) circuits. Additionally, the device should be connected to a fuse or a polyfuse to prevent damage from excessive current.
  • The recommended storage temperature range for the TLD23313EPXUMA1 is -40°C to 125°C. Storing the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLD23313EPXUMA1 Overview

Use the download button to access the TLD23313EPXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLD23, or try a keyword search, such as Display Drivers
