TLD5097EL - Infineon

Description: Display Drivers & Controllers MC RELAY + LED

Download TLD5097EL Model

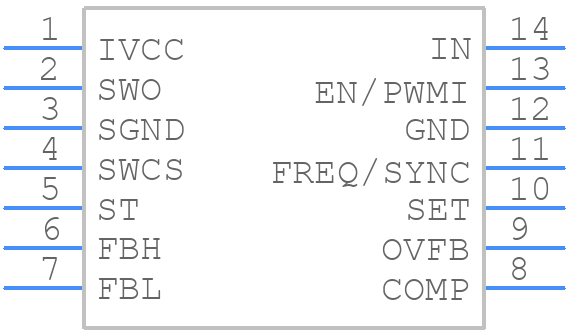

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLD5097EL - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLD5097EL
click to zoom
3D Models
TLD5097EL - Infineon  - 3D model - Small Outline Packages - TLD5097EL
click to zoom

TLD5097EL Details

  • Manufacturer Part Number:

    TLD5097EL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    HAS EXTENDED SUPPLY VOLTAGE RANGING FROM 4.5 TO 45 V

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TLD5097EL Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 mm clearance around the device for airflow and heat dissipation.
  • Implement a proper thermal management system, including a heat sink and thermal interface material. Ensure the device is operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10 V or higher. For input capacitors, use 10 μF to 22 μF, and for output capacitors, use 10 μF to 47 μF.
  • Use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input lines. Ensure proper grounding and decoupling of the device.
  • The recommended input voltage range is 7 V to 18 V, with a maximum voltage of 20 V. Operating outside this range may affect device performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLD5097EL Overview

Use the download button to access the TLD5097EL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLD50, or try a keyword search, such as Display Drivers
