TLE4226G - Infineon

Description: Intelligent Sixfold Low-Side Switch Bipolar IC P-DSO-24-3 (SMD)

Download TLE4226G Model
Schematic
symbols

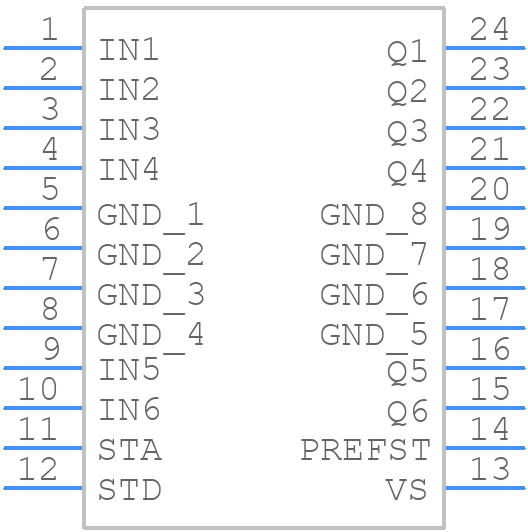

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE4226G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - P-DSO-24-3
click to zoom
3D Models
TLE4226G - Infineon  - 3D model - Small Outline Packages - P-DSO-24-3
click to zoom

TLE4226G Details

  • Manufacturer Part Number:

    TLE4226G

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Driver Number of Bits:

    6

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.5 A

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    220

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    3.5 µs

  • Turn-on Time:

    1.6 µs

  • Width:

    7.6 mm

TLE4226G Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output stages separate, use a ground plane, and minimize the length of the traces. Additionally, it is recommended to use a common mode choke and a shielded inductor to reduce EMI.
  • To ensure stability, it is essential to follow the recommended operating conditions, such as input voltage, output current, and temperature range. Additionally, a proper PCB layout, decoupling capacitors, and a stable input voltage are crucial for stable operation.
  • The maximum allowed voltage drop across the TLE4226G is 40V. Exceeding this voltage drop may damage the device.
  • The TLE4226G is rated for operation up to 150°C. However, it is essential to consider the derating of the device's performance and the potential for thermal runaway at high temperatures.
  • The TLE4226G has built-in overcurrent and overvoltage protection. However, it is recommended to add external protection circuits, such as fuses or current limiting resistors, to ensure the device's safety in case of a fault condition.
