TLE4267GXT - Infineon

Description: LDO Voltage Regulators 5-V Low Drop Fixed Voltage Regulator 400 mA,-40C+150C

Download TLE4267GXT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLE4267GXT - Infineon - PCB symbol
click to zoom
PCB Footprints

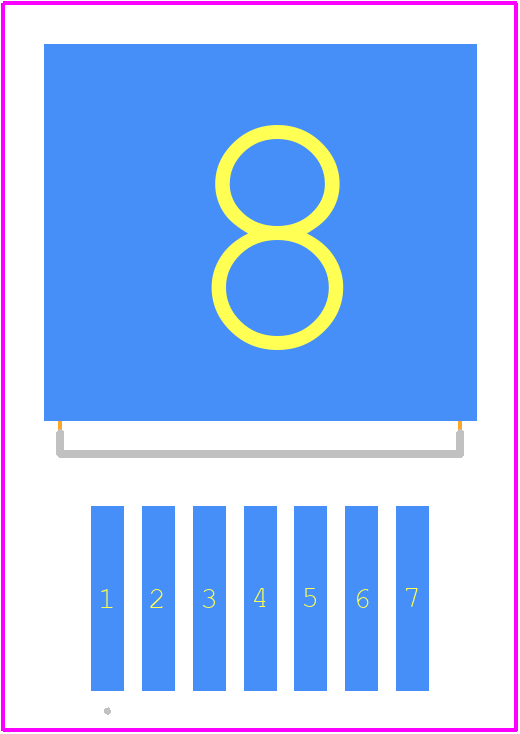

TLE4267GXT - Infineon PCB footprint - Other - Other - PG-TO263-7_2025-5
click to zoom
3D Models
TLE4267GXT - Infineon - 3D model - Other - PG-TO263-7_2025-5
click to zoom

TLE4267GXT Details

  • Manufacturer Part Number:

    TLE4267GXT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Part Package Code:

    D2PAK

  • Package Description:

    PLASTIC, TO-263, 7 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    2

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    R-PSSO-G7

  • Length:

    10 mm

  • Load Regulation-Max:

    0.05%

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.4 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    2%

  • Width:

    9.25 mm

TLE4267GXT Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2015-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating that is at least 1.5 times the maximum input voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low to minimize voltage ripple.
  • The TLE4267GXT is specified to operate from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the thermal management section in the datasheet and application notes for guidance on thermal design and derating.
  • Yes, the TLE4267GXT is qualified according to AEC-Q100, which makes it suitable for automotive applications. Additionally, Infineon provides a dedicated automotive grade version, TLE4267GXT-A, which meets the specific requirements of the automotive industry. For high-reliability applications, it's recommended to consult the device's FIT (Failure In Time) rate and to implement suitable design and testing procedures to ensure the required level of reliability.
