A good PCB layout for the TLE426942ELXUMA1 involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper cooling, make sure the TLE426942ELXUMA1 is mounted on a heat sink with a thermal conductivity of at least 1 W/mK. The heat sink should be connected to a solid ground plane to dissipate heat efficiently. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components.
The maximum allowed voltage drop across the TLE426942ELXUMA1 is 0.5 V. Exceeding this voltage drop may lead to reduced performance, increased power consumption, or even device damage.
The TLE426942ELXUMA1 is rated for operation up to 150°C. However, it's recommended to derate the device's performance and power handling at high temperatures. Consult the datasheet for specific derating guidelines.
To troubleshoot issues with the TLE426942ELXUMA1, start by checking the input and output voltages, as well as the device's temperature. Verify that the device is properly connected and that the PCB layout is correct. If issues persist, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE426942ELXUMA1 Overview

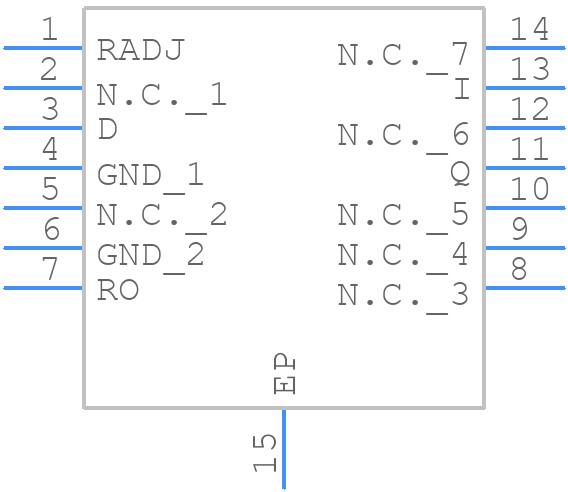

Use the download button to access the TLE426942ELXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE42,
or try a keyword search, such as Linear Regulator ICs
