TLE42702GATMA1 - Infineon

TLE42702GATMA1 Details

• Manufacturer Part Number:

  TLE42702GATMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

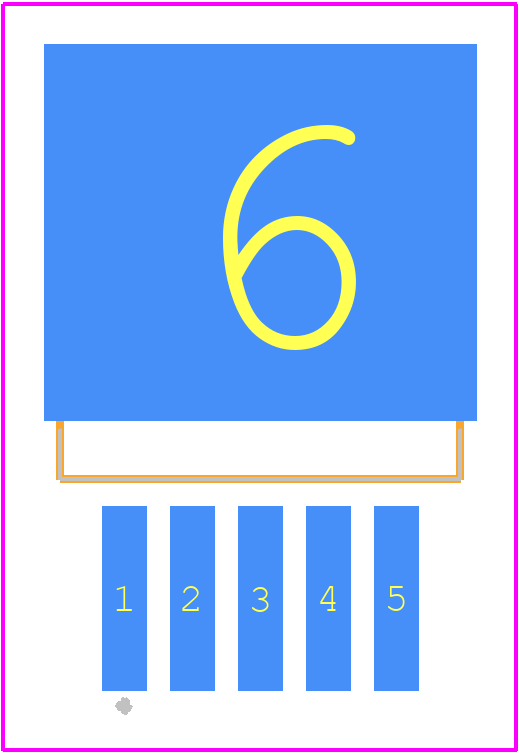

• Package Description:

  GREEN, PLASTIC, TO-263, 5 PIN

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  6.2

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.7 V

• Dropout Voltage1-Nom:

  0.35 V

• Input Voltage Absolute-Max:

  65 V

• Input Voltage-Max:

  42 V

• Input Voltage-Min:

  6 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e3

• Length:

  10 mm

• Line Regulation-Max:

  0.025%

• Load Regulation-Max:

  0.05%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.65 A

• Output Voltage1-Max:

  5.1 V

• Output Voltage1-Min:

  4.9 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Equivalence Code:

  SMSIP5H,.6,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  4.5 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.7 mm

• Terminal Position:

  SINGLE

• Voltage Tolerance-Max:

  2%

• Width:

  9.25 mm
