A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal via array can help to dissipate heat efficiently.
To ensure EMC, follow proper PCB design and layout guidelines, use a shielded enclosure, and ensure that the device is properly decoupled from the power supply. Additionally, use filters or chokes to reduce electromagnetic interference (EMI) and ensure that the device is operated within its specified frequency range.
The recommended operating voltage range for the TLE42712GATMA1 is 5.5 V to 40 V, with a maximum voltage of 45 V for short-term transients. Operating the device outside of this range may affect its performance and reliability.
Use a voltage regulator or a voltage supervisor to regulate the input voltage and prevent overvoltage and undervoltage conditions. Additionally, consider using a voltage clamp or a transient voltage suppressor to protect the device from voltage transients.
The maximum current rating for the TLE42712GATMA1 is 1.5 A, with a maximum peak current of 3 A. Exceeding this rating may cause the device to overheat or fail.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE42712GATMA1 Overview

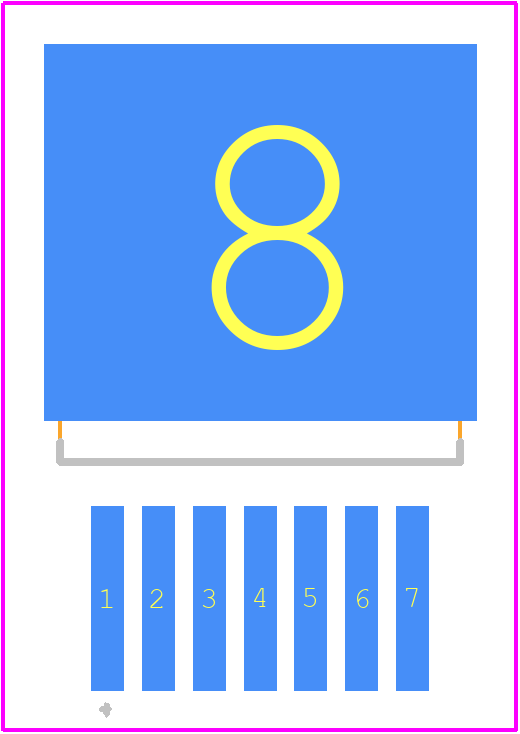

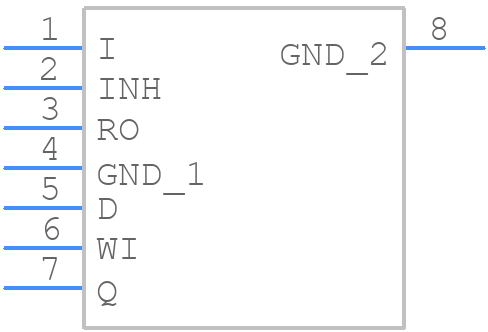

Use the download button to access the TLE42712GATMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE42,
or try a keyword search, such as Linear Regulator ICs
