A good PCB layout for the TLE4278G involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The input capacitor should be chosen based on the input voltage, output voltage, and the desired output ripple. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating of at least 1.5 times the input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
The TLE4278G is specified to operate from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. In general, it's recommended to keep the ambient temperature below 125°C to ensure reliable operation.
The power dissipation of the TLE4278G can be calculated using the formula: Pd = (Vin - Vout) x Iout x η, where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and η is the efficiency of the device. The efficiency can be obtained from the datasheet or by measuring the input and output power.
The output capacitor should be chosen based on the output voltage, output current, and the desired output ripple. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating of at least 1.5 times the output voltage. Ceramic capacitors with low ESR and high reliability, such as X5R or X7R, are recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE4278G Overview

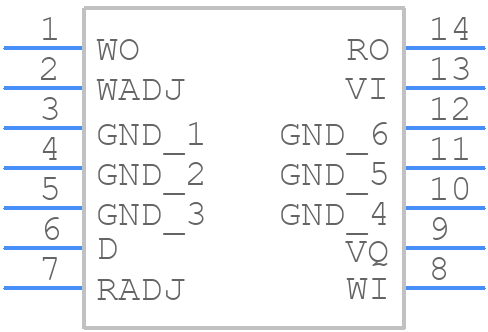

Use the download button to access the TLE4278G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE42,
or try a keyword search, such as Linear Regulator ICs
