Infineon provides a recommended PCB layout for the TLE42794GMXUMA2 in the application note AN2019-07. It suggests using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat efficiently.
To ensure EMC, follow the guidelines in the Infineon application note AN2013-03, which provides recommendations for PCB layout, component placement, and shielding. Additionally, use a common-mode choke and a filter capacitor to reduce electromagnetic interference (EMI).
The maximum allowed voltage drop across the TLE42794GMXUMA2 is 0.5 V. Exceeding this voltage drop may lead to reduced performance, increased power consumption, or even damage to the device.
The TLE42794GMXUMA2 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for guidance on using the device in high-temperature environments.
To troubleshoot issues with the TLE42794GMXUMA2, follow a systematic approach: 1) Verify the power supply and input voltage, 2) Check the output voltage and current, 3) Verify the enable and shutdown pins, 4) Check for thermal issues, and 5) Consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE42794GMXUMA2 Overview

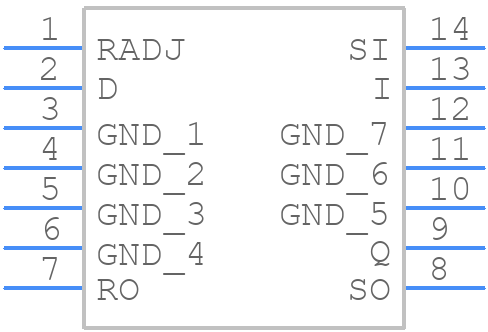

Use the download button to access the TLE42794GMXUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE42,
or try a keyword search, such as Linear Regulator ICs
