TLE4972-AE35S5 - Infineon

Description: TLE4972 high precision coreless current sensor for automotive applications

Download TLE4972-AE35S5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

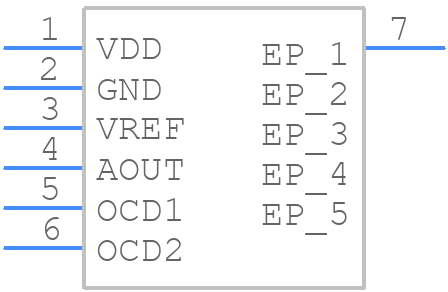

TLE4972-AE35S5 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE4972-AE35S5 - Infineon PCB footprint - Other - Other - PG-VSON-6-4
click to zoom
3D Models
TLE4972-AE35S5 - Infineon - 3D model - Other - PG-VSON-6-4
click to zoom

TLE4972-AE35S5 Details

  • Manufacturer Part Number:

    TLE4972-AE35S5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-6

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Body Breadth:

    3.5 mm

  • Body Height:

    0.85 mm

  • Body Length or Diameter:

    4.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    -2-2mA

  • Output Type:

    ANALOG CURRENT

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100; ISO 26262

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    3.1 V

  • Surface Mount:

    YES

TLE4972-AE35S5 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2015-07, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The thermal shutdown feature is activated when the junction temperature exceeds 170°C. To handle this, ensure proper thermal design, use a heat sink if necessary, and implement a thermal monitoring and shutdown mechanism in your system design.
  • Although the datasheet specifies a maximum VCC voltage of 5.5V, it's recommended to limit the voltage to 5V to ensure reliable operation and prevent damage to the device.
  • Calibration is not required for the TLE4972-AE35S5, as it is a pre-calibrated device. However, ensure that the device is operated within the specified temperature range and that the input voltage is within the recommended range for optimal performance.
  • A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor is recommended to filter out noise and ensure stable operation. However, the optimal filter configuration may vary depending on the specific application and noise environment.
