Infineon provides a recommended PCB layout in the application note AN2014-03, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TLE4972AE35S5XUMA1 has a thermal pad that must be connected to a heat sink or a thermal vias to dissipate heat. The application note AN2014-03 provides guidelines for thermal management, including thermal pad connection, heat sink design, and thermal interface material selection.
Although the datasheet specifies a recommended operating voltage range of 4.5V to 5.5V, the absolute maximum rating for the VCC pin is 6.5V. However, it's recommended to operate the device within the specified range to ensure reliable operation and prevent damage.
The TLE4972AE35S5XUMA1 is rated for operation up to 150°C, but the device's performance and accuracy may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
Infineon provides a troubleshooting guide in the application note AN2014-03, which covers common issues such as incorrect pin connections, thermal management, and electromagnetic interference (EMI). Additionally, Infineon's support team can provide assistance with troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE4972AE35S5XUMA1 Overview

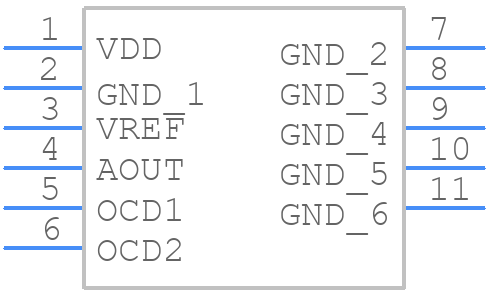

Use the download button to access the TLE4972AE35S5XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE49,
or try a keyword search, such as Other Sensors/Transducers
