TLE4997A8DXUMA1 - Infineon

Description: Board Mount Hall Effect / Magnetic Sensors

Download TLE4997A8DXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

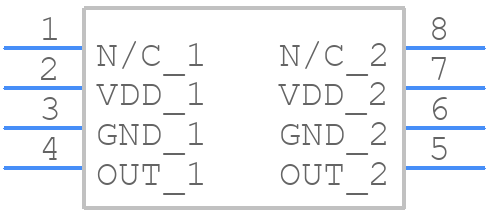

TLE4997A8DXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE4997A8DXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE_PG-TDSO-8
click to zoom
3D Models
TLE4997A8DXUMA1 - Infineon - 3D model - Small Outline Packages - TLE_PG-TDSO-8
click to zoom

TLE4997A8DXUMA1 Details

  • Manufacturer Part Number:

    TLE4997A8DXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP-8

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • Additional Feature:

    AEC-Q100; IT ALSO OPERATES AT EXTENDED RANGE 4 TO 7V SUPPLY VOLTAGE; IT HAS SENSITIVITY OF 300 MV/MT; SHORT CIRCUIT PROTECTION

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Magnetic Field Range-Max:

    200 mT

  • Magnetic Field Range-Min:

    -50 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 mA

  • Output Range:

    -1.0-1.0mA

  • Output Type:

    DIGITAL CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

TLE4997A8DXUMA1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLE4997A8DXUMA1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog layer is recommended.
  • To ensure accurate magnetic field measurements, it's essential to calibrate the device, use a proper shielding, and minimize external interference. Also, ensure the device is properly aligned with the magnetic field and the sensor is not saturated.
  • The TLE4997A8DXUMA1 can operate in a temperature range of -40°C to 150°C. However, the device's accuracy and sensitivity may degrade at extreme temperatures.
  • Yes, the TLE4997A8DXUMA1 is designed for safety-critical applications, such as in the automotive industry. It meets the requirements of the ISO 26262 standard for functional safety.
  • The TLE4997A8DXUMA1 can be interfaced with a microcontroller using the SPI or I²C interface. The device's output can be connected to the microcontroller's analog-to-digital converter (ADC) or digital input pins.
