TLE4997A8XUMA1 - Infineon

Description: Board Mount Hall Effect / Magnetic Sensors POSITION SENSORS

Download TLE4997A8XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

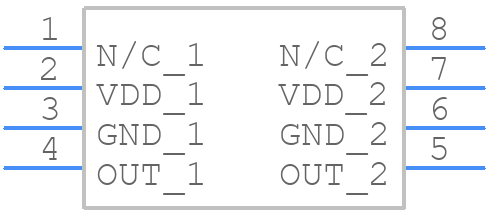

TLE4997A8XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE4997A8XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TDSO-8
click to zoom
3D Models
TLE4997A8XUMA1 - Infineon - 3D model - Small Outline Packages - PG-TDSO-8
click to zoom

TLE4997A8XUMA1 Details

  • Manufacturer Part Number:

    TLE4997A8XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP-8

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • Additional Feature:

    AEC-Q100; IT ALSO OPERATES AT EXTENDED RANGE 4 TO 7V SUPPLY VOLTAGE; IT HAS SENSITIVITY OF 300 MV/MT; SHORT CIRCUIT PROTECTION

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Magnetic Field Range-Max:

    200 mT

  • Magnetic Field Range-Min:

    -50 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 mA

  • Output Range:

    -1.0-1.0mA

  • Output Type:

    DIGITAL CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

TLE4997A8XUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the VCC pin.
  • Use a shielded cable to connect the sensor to the microcontroller, and ensure the sensor is not exposed to external magnetic fields. Calibrate the sensor by rotating it through 360° and averaging the output values.
  • The TLE4997A8XUMA1 can operate from -40°C to 150°C, but the accuracy and sensitivity may degrade at extreme temperatures. Ensure proper thermal management and consider using a heat sink if operating at high temperatures.
  • The TLE4997A8XUMA1 is not certified for safety-critical applications. However, it can be used in safety-related applications with proper design, testing, and validation. Consult Infineon's safety manual and relevant industry standards (e.g., ISO 26262) for guidance.
  • Use a shielded enclosure, keep the sensor and connecting cables away from high-frequency sources, and ensure proper grounding. Implement EMI filters or shielding on the PCB if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE4997A8XUMA1 Overview

Use the download button to access the TLE4997A8XUMA1 schematic symbol, PCB footprint, and 3D model.
