Part Image

TLE5012BDE1200XUMA1 - Infineon

Description: Board Mount Hall Effect / Magnetic Sensors POSITION&CURRENT SENSORS

Download TLE5012BDE1200XUMA1 Model

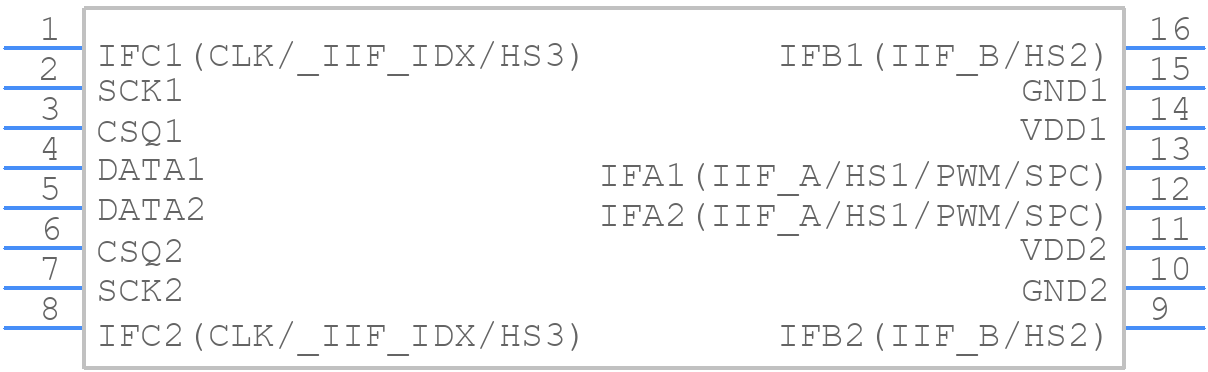

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE5012BDE1200XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TDSO-16
click to zoom
3D Models
TLE5012BDE1200XUMA1 - Infineon  - 3D model - Small Outline Packages - TDSO-16
click to zoom

TLE5012BDE1200XUMA1 Details

  • Manufacturer Part Number:

    TLE5012BDE1200XUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDSO-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Tin (Sn)

TLE5012BDE1200XUMA1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLE5012BDE1200XUMA1 involves keeping the sensitive analog circuitry away from the digital circuitry, using a solid ground plane, and minimizing the length of the traces connected to the sensor pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • The TLE5012BDE1200XUMA1 requires a one-time calibration process to set the internal trim values. This can be done using the Infineon provided calibration software and a calibration coil. The calibration process involves applying a known magnetic field to the sensor and adjusting the trim values to achieve optimal accuracy.
  • The TLE5012BDE1200XUMA1 has an operating temperature range of -40°C to 150°C. However, the accuracy and sensitivity of the sensor may degrade at extreme temperatures. It is recommended to operate the sensor within a temperature range of -20°C to 125°C for optimal performance.
  • The TLE5012BDE1200XUMA1 is a high-reliability device, but it is not certified for use in safety-critical applications. If you need to use the sensor in a safety-critical application, you should consult with Infineon's safety experts and follow the relevant safety standards and guidelines.
  • To protect the TLE5012BDE1200XUMA1 from EMI, use a shielded cable for the sensor connections, keep the sensor away from high-frequency sources, and use a common-mode filter or a ferrite bead on the power supply lines. Additionally, ensure that the PCB layout is designed to minimize electromagnetic radiation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE5012BDE1200XUMA1 Overview

Use the download button to access the TLE5012BDE1200XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE50, or try a keyword search, such as Other Sensors/Transducers
