Technical Content
Part Image

TLE5012BE3005XUMA1 - Infineon

Description: INFINEON - TLE5012BE3005XUMA1 - GMR Angle Sensor, 3V to 5.5V, SOIC-8

Download TLE5012BE3005XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

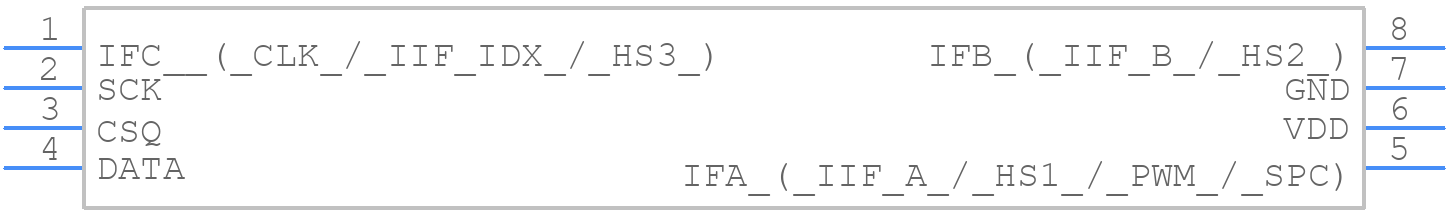

Symbol
TLE5012BE3005XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE5012BE3005XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE5012B E3005
click to zoom
3D Models
TLE5012BE3005XUMA1 - Infineon - 3D model - Small Outline Packages - TLE5012B E3005
click to zoom

TLE5012BE3005XUMA1 Details

  • Manufacturer Part Number:

    TLE5012BE3005XUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC, DSO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Tin (Sn)

TLE5012BE3005XUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE5012BE3005XUMA1 can be found in the Infineon application note AN215 'Layout Recommendations for TLE5012' which provides guidelines for optimal PCB design and layout to ensure reliable operation.
  • The TLE5012BE3005XUMA1 is a self-calibrating device, but it may require additional calibration steps depending on the specific application. Refer to the Infineon application note AN216 'Calibration of TLE5012' for more information.
  • The maximum operating temperature range for the TLE5012BE3005XUMA1 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • Yes, the TLE5012BE3005XUMA1 is designed to meet the requirements of safety-critical applications, such as automotive and industrial control systems. However, it's essential to follow the guidelines and recommendations outlined in the Infineon safety manual and relevant industry standards.
  • For troubleshooting issues with the TLE5012BE3005XUMA1, refer to the Infineon application note AN217 'Troubleshooting Guide for TLE5012' which provides a step-by-step guide to identifying and resolving common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE5012BE3005XUMA1 Overview

Use the download button to access the TLE5012BE3005XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE50, or try a keyword search, such as Other Sensors/Transducers
