The recommended PCB layout for the TLE5014C16XUMA1 involves placing the device near the magnetic target, using a solid ground plane, and keeping the signal traces as short as possible to minimize noise and interference.
Calibration of the TLE5014C16XUMA1 involves adjusting the sensitivity and offset registers to optimize the device's performance for the specific application. This can be done using the device's built-in calibration modes and registers.
The maximum operating temperature range for the TLE5014C16XUMA1 is -40°C to 150°C, although the device's performance may degrade at extreme temperatures.
The TLE5014C16XUMA1's output data can be handled by using a microcontroller or other processing unit to read and interpret the device's output signals, which can be in the form of analog or digital signals.
The typical current consumption of the TLE5014C16XUMA1 is around 10mA, although this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE5014C16XUMA1 Overview

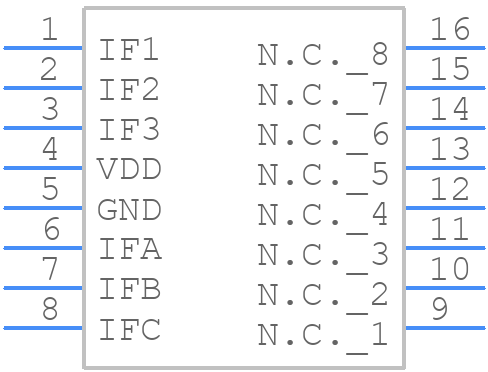

Use the download button to access the TLE5014C16XUMA1 schematic symbol, PCB footprint, and 3D model.
