Technical Content
Part Image

TLE5014P16XUMA1 - Infineon

Description: Board Mount Hall Effect / Magnetic Sensors POSITION SENS ATV

Download TLE5014P16XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

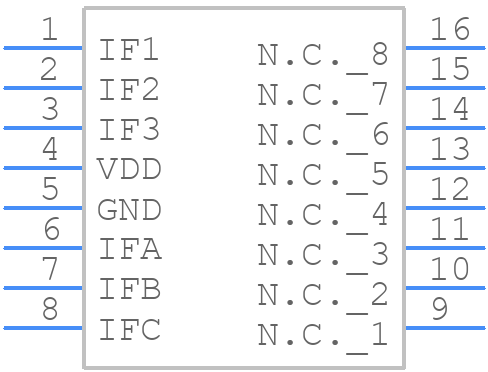

Symbol
TLE5014P16XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE5014P16XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TDSO-16
click to zoom
3D Models
TLE5014P16XUMA1 - Infineon - 3D model - Small Outline Packages - PG-TDSO-16
click to zoom

TLE5014P16XUMA1 Details

  • Manufacturer Part Number:

    TLE5014P16XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    13

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)

TLE5014P16XUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE5014P16XUMA1 involves placing the device near the magnet, using a solid ground plane, and keeping the signal traces as short as possible to minimize noise and interference.
  • The TLE5014P16XUMA1 does not require calibration. It is a self-calibrating device that automatically adjusts its internal parameters during the power-on sequence.
  • The maximum operating frequency of the TLE5014P16XUMA1 is 10 kHz. However, the device can operate at higher frequencies with reduced accuracy and resolution.
  • The TLE5014P16XUMA1 is optimized for use with Infineon's recommended magnets. Using a non-standard magnet may affect the device's accuracy and performance. However, the device can be used with custom magnets with proper characterization and calibration.
  • The TLE5014P16XUMA1 outputs 16-bit data in two's complement format. The data can be processed using a microcontroller or a dedicated IC, and can be converted to other formats such as angle or position data using trigonometric calculations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE5014P16XUMA1 Overview

Use the download button to access the TLE5014P16XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE50, or try a keyword search, such as Other Signal Circuits
