TLE6225G - Infineon

Description: Infineon TLE6225G, Quad-Channel Intelligent Power Switch, Low Side, 500mA, 4.5 → 32V 20-Pin, SOIC

Download TLE6225G Model

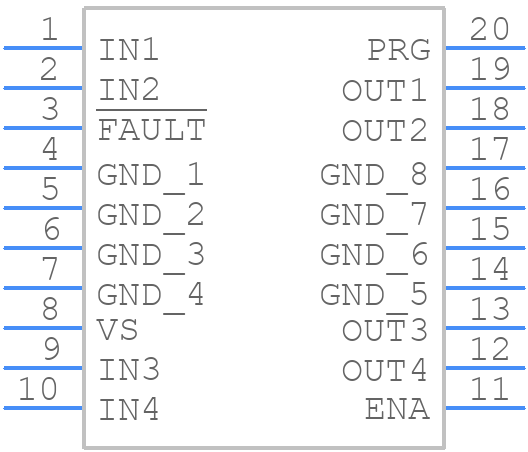

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE6225G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20
click to zoom
3D Models
TLE6225G - Infineon  - 3D model - Small Outline Packages - PG-DSO-20
click to zoom

TLE6225G Details

  • Manufacturer Part Number:

    TLE6225G

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e0

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.3 A

  • Output Peak Current Limit-Nom:

    0.75 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    32 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

  • Width:

    7.6 mm

TLE6225G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLE6225G is -40°C to 150°C.
  • To ensure EMC, follow proper PCB design guidelines, use a common mode choke, and add a ferrite bead to the power supply lines. Additionally, ensure that the device is properly decoupled and shielded.
  • Keep the layout as symmetrical as possible, with the device at the center. Use a star-shaped layout for the power supply lines, and keep the high-current paths short and wide. Avoid vias and right-angle bends in the high-current paths.
  • Use an oscilloscope to check the input and output waveforms, and verify that the device is properly powered and configured. Check for overheating, and ensure that the device is properly cooled. Consult the datasheet and application notes for troubleshooting guides.
  • Yes, the TLE6225G is suitable for high-reliability and safety-critical applications. However, ensure that you follow proper design and testing procedures, and consult with Infineon's application engineers for guidance on specific requirements.
