TLE6236G - Infineon

Description: IC PWR SWITCH N-CHAN 1:8 PDSO-28

Download TLE6236G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

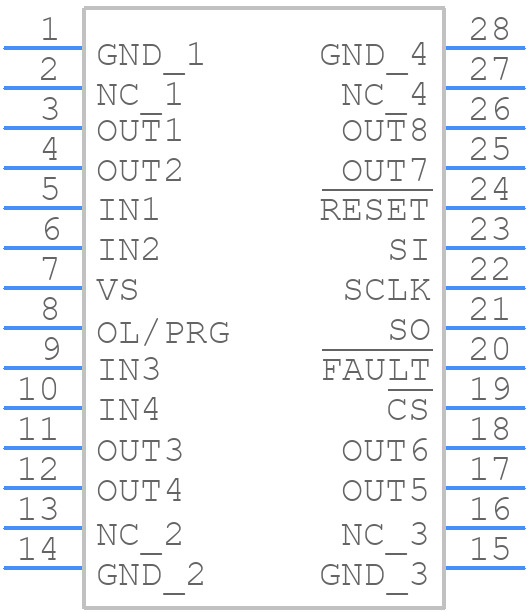

TLE6236G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - P-DSO 28
click to zoom
3D Models
TLE6236G - Infineon  - 3D model - Small Outline Packages - P-DSO 28
click to zoom

TLE6236G Details

  • Manufacturer Part Number:

    TLE6236G

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    18.1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    28

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.75 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

  • Width:

    7.6 mm

TLE6236G Frequently Asked Questions (FAQs)

  • The TLE6236G can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • To ensure EMC, follow proper PCB design guidelines, use a common mode choke, and add a ferrite bead to the power supply lines. Additionally, use a shielded cable for the output stage.
  • Place the TLE6236G close to the power supply and output stage. Ensure a symmetrical layout, and keep the sensitive analog signals away from the power stage. Use a ground plane to reduce EMI.
  • Use a voltage regulator or a transient voltage suppressor (TVS) to protect the TLE6236G from overvoltage conditions. For undervoltage protection, use a voltage supervisor or a reset IC to monitor the supply voltage.
  • Choose input capacitors with low ESR and high ripple current capability. For output capacitors, select ones with low ESR and high capacitance. Follow the recommended values and types specified in the datasheet.
