TLE6240GPAUMA1 - Infineon

Description: Smart 16-Ch Low Side Switch SPI DSO36

Download TLE6240GPAUMA1 Model

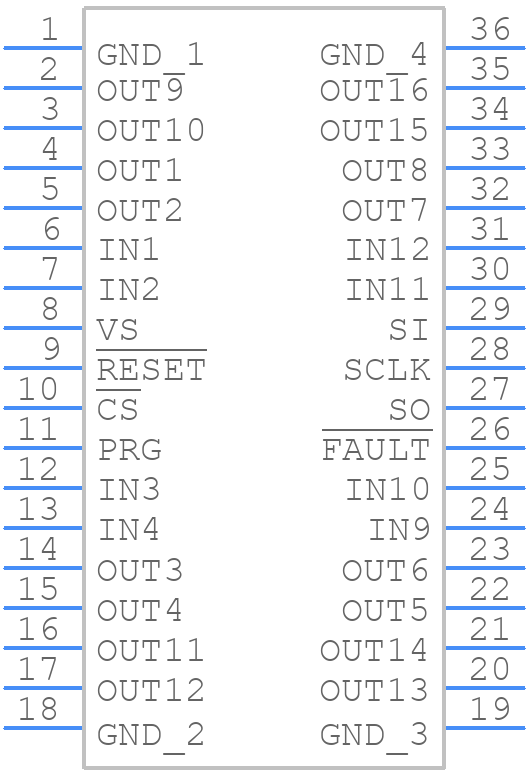

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

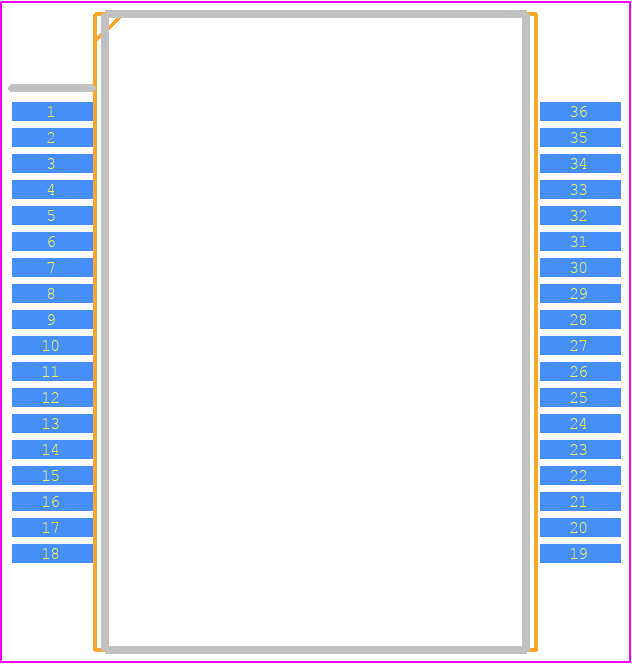

PCB Footprints
TLE6240GPAUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOP36-1
click to zoom
3D Models
TLE6240GPAUMA1 - Infineon  - 3D model - Small Outline Packages - SOP36-1
click to zoom

TLE6240GPAUMA1 Details

  • Manufacturer Part Number:

    TLE6240GPAUMA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-36

  • Pin Count:

    36

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    36

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    4.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    12 µs

  • Turn-on Time:

    12 µs

  • Width:

    11 mm

TLE6240GPAUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLE6240GPAUMA1 is -40°C to 150°C.
  • To ensure EMC, follow the layout and grounding guidelines provided in the datasheet, and use proper shielding and filtering techniques to minimize electromagnetic interference.
  • The recommended PCB layout for the TLE6240GPAUMA1 involves placing the device near the power source, using a solid ground plane, and minimizing trace lengths and widths to reduce electromagnetic radiation.
  • To troubleshoot issues with the TLE6240GPAUMA1, check the power supply voltage, ensure proper grounding, and verify that the input and output signals are within the specified ranges. Use an oscilloscope to analyze the waveforms and identify any anomalies.
  • Yes, the TLE6240GPAUMA1 is suitable for high-reliability applications, such as automotive and industrial systems, due to its high temperature range, low power consumption, and robust design.
