TLE6244X - Infineon

TLE6244X Details

• Manufacturer Part Number:

  TLE6244X

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

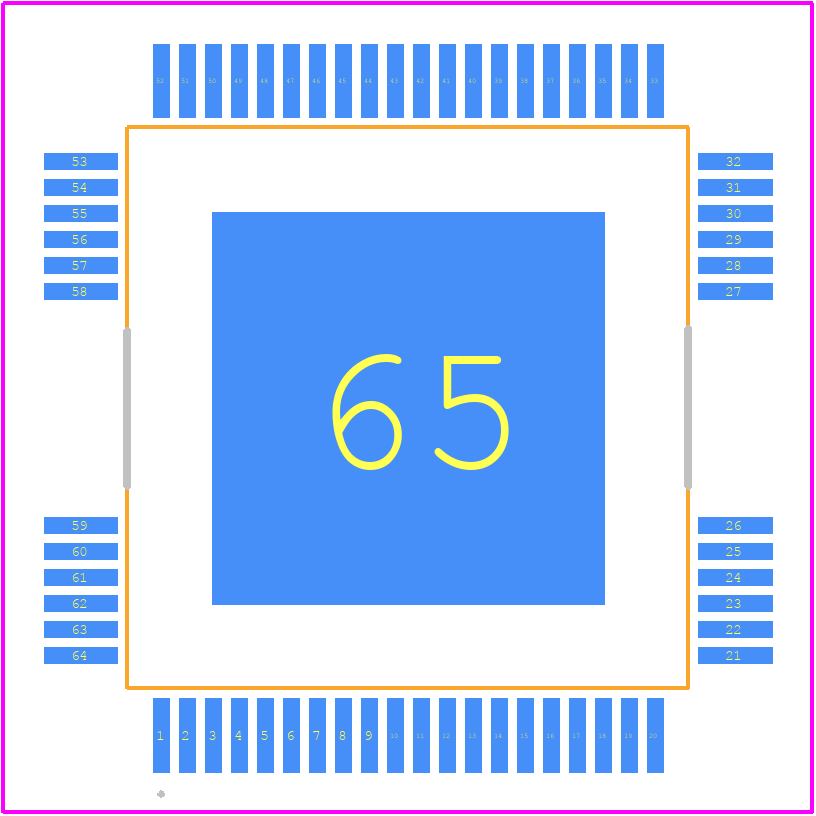

• Part Package Code:

  QFP

• Package Description:

  PLASTIC, MQFP-64

• Pin Count:

  64

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Built-in Protections:

  OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e3

• Length:

  14 mm

• Number of Functions:

  1

• Number of Terminals:

  64

• Output Current Flow Direction:

  SINK

• Output Peak Current Limit-Nom:

  3.3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HQFP

• Package Equivalence Code:

  QFP80,.68SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  MOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  10 µs

• Turn-on Time:

  10 µs

• Width:

  14 mm
