TLE6250GV33 - Infineon

Description: High Speed CAN-Transceiver

Download TLE6250GV33 Model

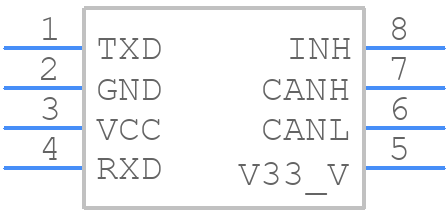

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE6250GV33 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8_a
click to zoom
3D Models
TLE6250GV33 - Infineon  - 3D model - Small Outline Packages - PG-DSO-8_a
click to zoom

TLE6250GV33 Details

  • Manufacturer Part Number:

    TLE6250GV33

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.07 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

TLE6250GV33 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLE6250GV33 is -40°C to 150°C.
  • The TLE6250GV33 can be configured using the SPI interface. Refer to the datasheet for the register map and configuration options.
  • The maximum current rating for the TLE6250GV33 is 5A per channel.
  • Yes, the TLE6250GV33 can be used in high-voltage applications up to 40V.
  • Refer to the datasheet for troubleshooting guidelines and use tools such as oscilloscopes and logic analyzers to debug issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE6250GV33 Overview

Use the download button to access the TLE6250GV33 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE62, or try a keyword search, such as Network Interfaces

Parts related to TLE6250GV33

Showing 0 results

TLE6250GV33 Alternates

Showing results

Image Part Number Model
Part Image TLE6250GV33XUMA1 Infineon Technologies AG

CAN Transceiver, BICMOS, PDSO8

Part Image TLE6250GV33NT Infineon Technologies AG

CAN Transceiver, BICMOS, PDSO8

Part Image TLE6250GV33NTMA1 Infineon Technologies AG

CAN Transceiver, BICMOS, PDSO8
