A good PCB layout for the TLE6251-2G involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common mode choke and a shielded cable to reduce EMI.
The choice of external components for the TLE6251-2G depends on the specific application requirements. For example, the choice of inductor value depends on the output voltage, output current, and switching frequency. The datasheet provides guidelines for selecting the inductor, capacitor, and resistor values.
The TLE6251-2G is rated for an ambient temperature range of -40°C to 150°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to consider the thermal design and heat dissipation in the system.
The TLE6251-2G has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the calculation of the OCP threshold.
Yes, the TLE6251-2G is suitable for high-reliability applications. It's manufactured using a robust process, and Infineon provides a detailed reliability report and failure-in-time (FIT) rate data to support the device's use in high-reliability applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE6251-2G Overview

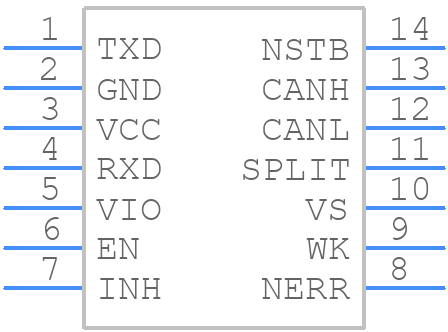

Use the download button to access the TLE6251-2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE62,
or try a keyword search, such as Network Interfaces
