TLE6281G - Infineon

Description: H-bridge driver IC for MOSFET power stages with multiple protection functions

Download TLE6281G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

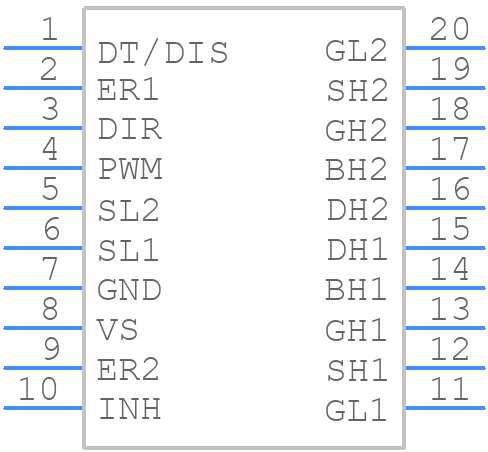

TLE6281G - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE6281G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20-31
click to zoom
3D Models
TLE6281G - Infineon - 3D model - Small Outline Packages - PG-DSO-20-31
click to zoom

TLE6281G Details

  • Manufacturer Part Number:

    TLE6281G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    7.5 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    7.6 mm

TLE6281G Frequently Asked Questions (FAQs)

  • The TLE6281G can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • The TLE6281G can be configured using the SPI interface. You can use the Infineon configuration tool or write your own code to configure the device. Refer to the application note and user manual for more information.
  • The TLE6281G has a maximum current rating of 1.5A per channel, making it suitable for low-to-medium power applications.
  • The TLE6281G has a maximum voltage rating of 40V, making it suitable for automotive and industrial applications. However, it's essential to ensure that the device is properly protected against overvoltage and overcurrent conditions.
  • Use a logic analyzer or oscilloscope to debug the SPI interface and verify that the device is configured correctly. Check the device's status registers to identify any error conditions. Refer to the datasheet and application note for more information.
