TLE6282G - Infineon

Description: Infineon TLE6282G, Half Bridge Motor Driver Half-Bridge,, 20-Pin DSO

Download TLE6282G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

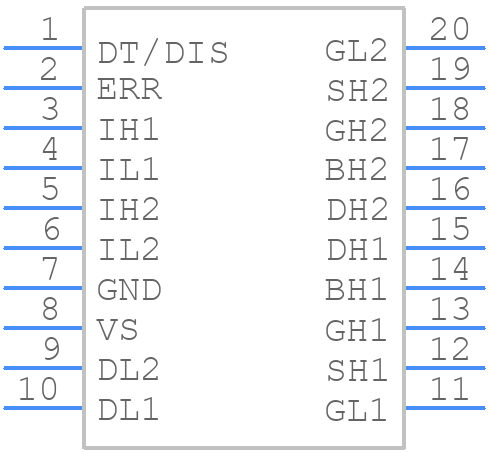

TLE6282G - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE6282G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE6282G
click to zoom
3D Models
TLE6282G - Infineon - 3D model - Small Outline Packages - TLE6282G
click to zoom

TLE6282G Details

  • Manufacturer Part Number:

    TLE6282G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER
