A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal via array can help to dissipate heat efficiently.
To ensure EMC, use a shielded cable for the output stage, keep the PCB layout compact, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, follow good PCB design practices, such as separating analog and digital grounds, and using a solid ground plane.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
To troubleshoot issues, start by checking the power supply voltage, input signals, and output voltage. Use an oscilloscope to verify the input and output waveforms. Check for overheating, and ensure that the device is properly soldered and connected. Consult the datasheet and application notes for specific troubleshooting guidelines.
The TLE7230RAUMA1 is rated for operation up to 150°C, but it's recommended to derate the device for reliable operation above 125°C. Ensure good thermal design and heat dissipation to prevent overheating, and consider using a heat sink or thermal interface material if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE7230RAUMA1 Overview

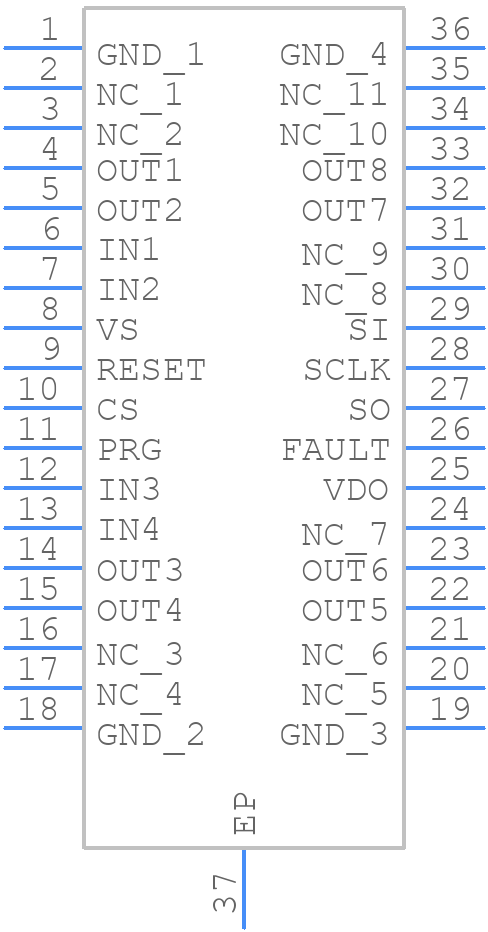

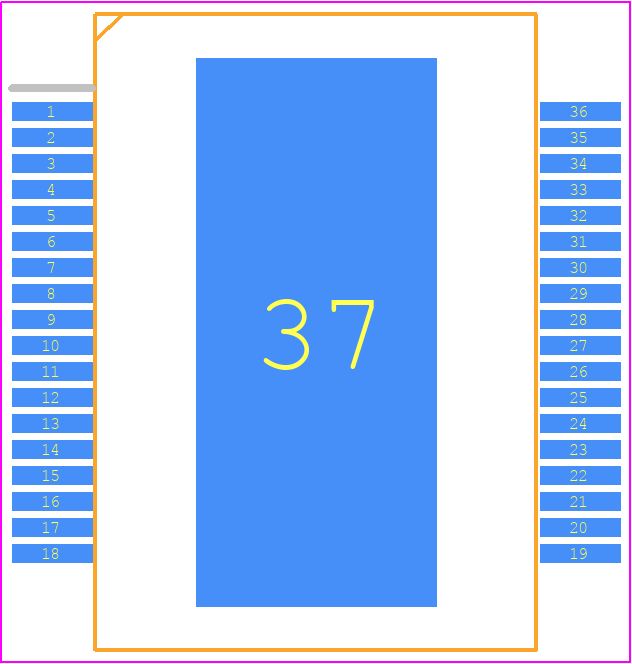

Use the download button to access the TLE7230RAUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE72,
or try a keyword search, such as Peripheral Drivers
