A good PCB layout for the TLE7241EXUMA2 should include a solid ground plane, wide power traces, and a thermal pad connected to a heat sink or a large copper area to dissipate heat. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The input capacitor should be chosen based on the input voltage ripple requirement, output current, and operating frequency. A low-ESR ceramic capacitor with a value between 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin to minimize inductance.
The maximum ambient temperature for the TLE7241EXUMA2 is 105°C. However, the device can operate up to 150°C junction temperature. It's essential to ensure proper thermal management to prevent overheating.
Yes, the TLE7241EXUMA2 is suitable for high-reliability applications. It's built with a robust design, and Infineon provides a comprehensive set of reliability data, including FIT rates and MTBF calculations, to support high-reliability applications.
To troubleshoot issues with the TLE7241EXUMA2, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage spikes, ringing, or oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE7241EXUMA2 Overview

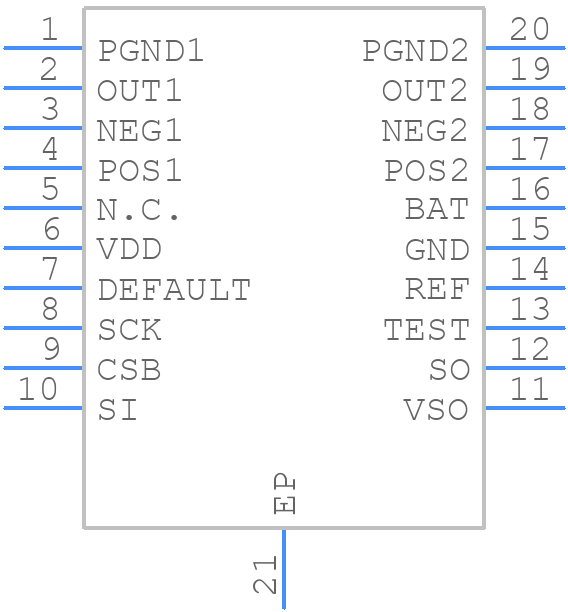

Use the download button to access the TLE7241EXUMA2 schematic symbol, PCB footprint, and 3D model.
