A good PCB layout for the TLE7250GVIO involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded cable and a common-mode choke can help reduce EMI.
To ensure proper cooling, make sure to provide adequate airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. The thermal resistance of the device should also be considered when designing the thermal management system.
Operating the TLE7250GVIO at high temperatures can reduce its lifespan and affect its performance. The device's maximum junction temperature is 150°C, and operating it at temperatures above 125°C can reduce its reliability and lifespan.
To protect the TLE7250GVIO from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended range. Additionally, consider using overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
The TLE7250GVIO has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure the workspace is ESD-safe to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE7250GVIO Overview

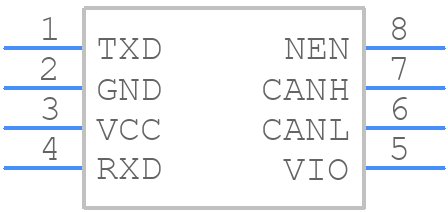

Use the download button to access the TLE7250GVIO schematic symbol, PCB footprint, and 3D model.
