TLE7250GVIOXUMA2 footprint, schematic symbol and 3D model by Infineon

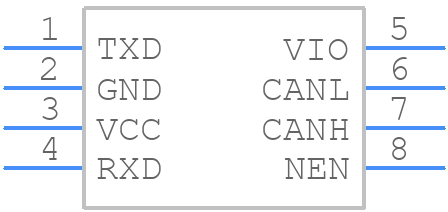

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLE7250GVIOXUMA2
Part Number TLE7250GVIOXUMA2
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category SOT23 (8-Pin)
Footprint Name SOT23 (8-Pin) - PG-DSO-8
Released Date Jul 9, 2026
Last Modified Date Jul 9, 2026 8:41 AM UTC
Pinout / Pin List Click Here (Member Only)

TLE7250GVIOXUMA2 Details

Manufacturer Part Number:
TLE7250GVIOXUMA2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
DSO-8
ECCN Code:
EAR99
HTS Code:
8542.39.00
Factory Lead Time:
53 Weeks, 1 Day
Manufacturer:
Infineon Technologies AG
YTEOL:
3
Data Rate:
1000 Mbps
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
2A
Number of Functions:
1
Number of Terminals:
8
Number of Transceivers:
1
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Screening Level:
AEC-Q100
Seated Height-Max:
1.75 mm
Supply Current-Max:
60 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Telecom IC Type:
INTERFACE CIRCUIT
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
4 mm

TLE7250GVIOXUMA2 Frequently Asked Questions (FAQs)

Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 5 thermal vias with a diameter of 0.3 mm is recommended.
To ensure EMC, Infineon recommends using a common-mode choke, a ferrite bead, and a decoupling capacitor (e.g., 100 nF) between the device and the power supply. Additionally, a shielded cable and a connector with a good shielding effectiveness should be used.
The maximum allowed voltage on the input pins is 40 V, but it's recommended to keep it below 35 V to ensure reliable operation.
Infineon recommends using a soldering iron with a temperature of 350°C maximum and a soldering time of 3 seconds maximum. For rework, a hot air soldering station with a temperature of 250°C maximum and an air flow of 1.5 bar maximum is recommended.
The device should be stored in a dry, cool place with a temperature range of -40°C to 125°C and a relative humidity of 60% maximum.
