Part Image

TLE7251VSJXUMA1 - Infineon

Description: INFINEON - TLE7251VSJXUMA1 - CAN TRANSCEIVER, 2MBPS, SOIC-8

Download TLE7251VSJXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

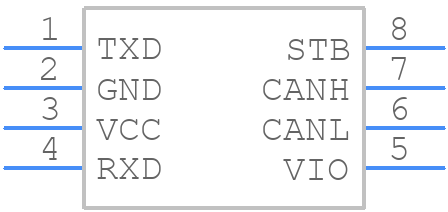

TLE7251VSJXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE7251VSJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8
click to zoom
3D Models
TLE7251VSJXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-8
click to zoom

TLE7251VSJXUMA1 Details

  • Manufacturer Part Number:

    TLE7251VSJXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

TLE7251VSJXUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure EMC, Infineon recommends following the guidelines in the application note AN215 'EMC Design Guide for the TLE7251VSJXUMA1'. This includes using a common mode choke, decoupling capacitors, and a shielded cable.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 35V to ensure reliable operation and prevent damage to the device.
  • Infineon recommends using an oscilloscope to monitor the input and output signals, and checking the device's thermal performance. Additionally, checking the PCB layout and component placement can help identify potential issues.
  • The recommended operating temperature range for the TLE7251VSJXUMA1 is -40°C to 150°C, but it's recommended to keep the junction temperature below 125°C for reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE7251VSJXUMA1 Overview

Use the download button to access the TLE7251VSJXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE72, or try a keyword search, such as Network Interfaces
