- Part Number TLE7258DXUMA1
- Manufacturer Infineon
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - PG-TSON-8
- Released Date Oct 21, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLE7258DXUMA1 Details
-
Manufacturer Part Number:
TLE7258DXUMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
GREEN, PLASTIC, TSON-8
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
111 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
0
-
JESD-609 Code:
e3
TLE7258DXUMA1 Frequently Asked Questions (FAQs)
-
A good thermal design should be used to ensure optimal heat dissipation. A minimum of 2oz copper thickness is recommended, and thermal vias should be placed under the device to dissipate heat efficiently.
-
To ensure EMC, follow proper PCB design guidelines, use a common mode choke, and add a ferrite bead in series with the power supply. Additionally, use a shielded cable and connector for the output stage.
-
The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 35V to ensure reliable operation and prevent damage to the device.
-
Use a voltage supervisor or a power-on reset circuit to monitor the input voltage and reset the device in case of overvoltage or undervoltage conditions.
-
A ceramic capacitor with a value of 10uF to 22uF is recommended for the input stage. The capacitor should be placed as close as possible to the device's input pins.
Trust Checks
Community Provided
System Verified
Community Approved
TLE7258DXUMA1 Overview

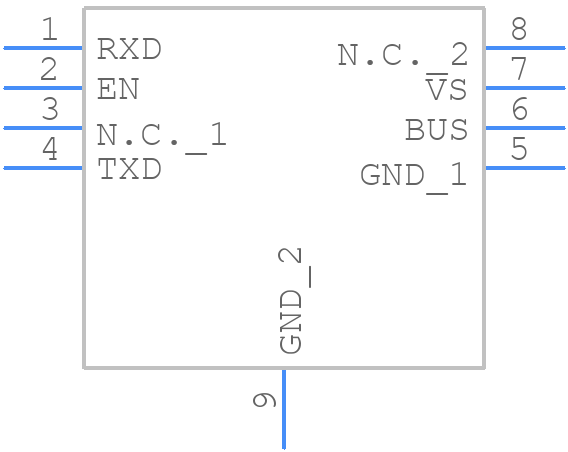

Use the download button to access the TLE7258DXUMA1 schematic symbol, PCB footprint, and 3D model.
