TLE7258SJXUMA1 - Infineon

Description: INFINEON - TLE7258SJXUMA1 - LIN TRANSCEIVER, AEC-Q100, 20KBPS, SOIC8

Download TLE7258SJXUMA1 Model

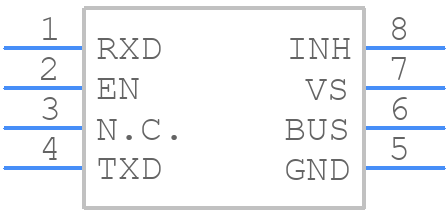

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE7258SJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8-ren2
click to zoom
3D Models
TLE7258SJXUMA1 - Infineon  - 3D model - Small Outline Packages - SOIC 8-ren2
click to zoom

TLE7258SJXUMA1 Details

  • Manufacturer Part Number:

    TLE7258SJXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC, SOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)
