TLE75080-ESD - Infineon

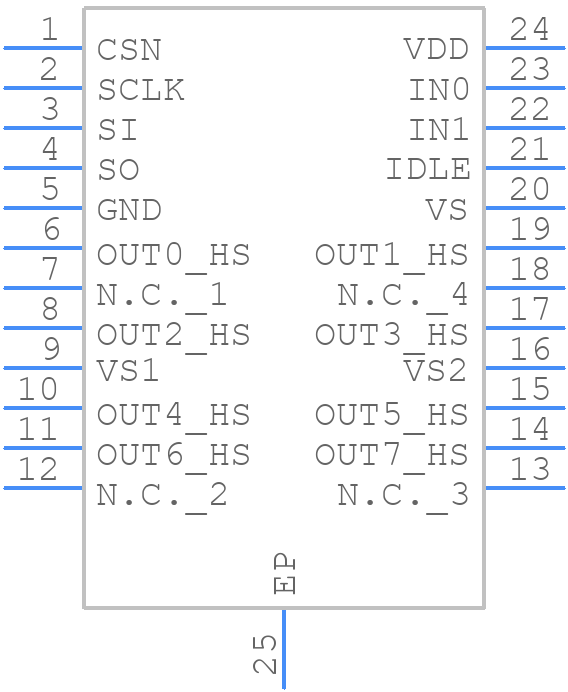

TLE75080-ESD Details

• Manufacturer Part Number:

  TLE75080-ESD

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  12

• Built-in Protections:

  OVER CURRENT; OVER VOLTAGE; SHORT CIRCUIT; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  8

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  8.65 mm

• Moisture Sensitivity Level:

  2A

• Number of Functions:

  8

• Number of Terminals:

  24

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-SOURCE

• Output Current Flow Direction:

  SINK

• Output Peak Current Limit-Nom:

  0.33 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.15 mm

• Supply Current-Max:

  7.7 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  7 V

• Supply Voltage-Nom:

  13.5 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  35 µs

• Turn-on Time:

  35 µs

• Width:

  3.9 mm
