TLE8104E - Infineon

Description: Power Switch ICs - Power Distribution SMART QUAD CHAN PWRTRAIN SWITCH

Download TLE8104E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

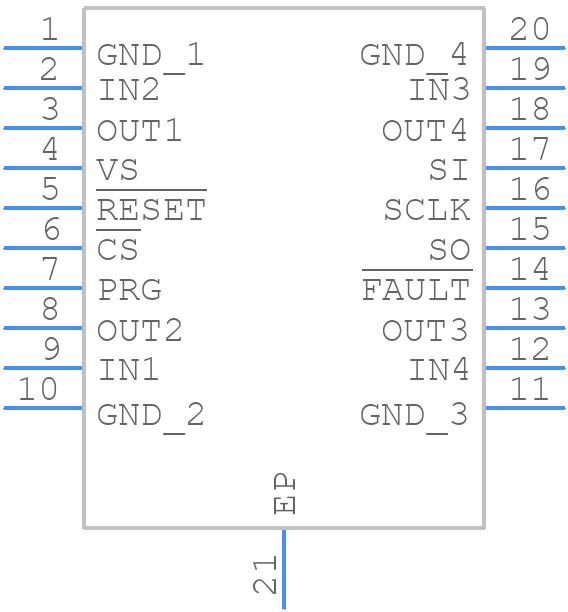

TLE8104E - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE8104E - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20-314
click to zoom
3D Models
TLE8104E - Infineon - 3D model - Small Outline Packages - PG-DSO-20-314
click to zoom

TLE8104E Details

  • Manufacturer Part Number:

    TLE8104E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    4.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

  • Width:

    7.6 mm

TLE8104E Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLE8104E involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or film capacitor with a value between 10uF to 100uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The TLE8104E is rated for operation from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation.
  • The TLE8104E has built-in overvoltage protection (OVP) and undervoltage protection (UVP) features. However, additional external protection circuits may be required depending on the specific application requirements. It's recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device in case of an overvoltage or undervoltage condition.
  • The recommended input voltage range for the TLE8104E is 5.5V to 40V, but the device can operate from 4.5V to 45V. However, the device's performance and reliability may be affected if the input voltage is outside the recommended range.
