O/P CURRENT FOR CH(1-4) IS 1.5 AMP, CH(7-10) IS 0.75 AMP; NO OF FUNCTIONS= 10
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
36
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
1.7 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.4,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
2.5 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Turn-off Time:
10 µs
Turn-on Time:
10 µs
Width:
7.6 mm
TLE8110EDXUMA1 Frequently Asked Questions (FAQs)
The recommended PCB layout for the TLE8110EDXUMA1 can be found in the Infineon application note AN215 'Layout Recommendations for TLE8110ED' which provides guidelines for optimal PCB design and layout to ensure proper operation and minimize electromagnetic interference (EMI).
The choice of external components for the TLE8110EDXUMA1 depends on the specific application requirements. Infineon provides a component selection guide in the datasheet, which recommends values for capacitors, resistors, and inductors based on the operating frequency and output voltage. Additionally, the application note AN216 'Component Selection for TLE8110ED' provides more detailed guidance on component selection.
The TLE8110EDXUMA1 is specified to operate over a temperature range of -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. It is recommended to consult the datasheet and application notes for guidance on thermal design and cooling requirements.
Troubleshooting issues with the TLE8110EDXUMA1 can be challenging, but Infineon provides a troubleshooting guide in the application note AN217 'Troubleshooting Guide for TLE8110ED'. This guide provides a step-by-step approach to identifying and resolving common issues, including output voltage errors, oscillations, and overheating.
Yes, the TLE8110EDXUMA1 is compatible with lead-free soldering processes. Infineon specifies the device to be compatible with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives, and provides guidance on lead-free soldering in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE8110EDXUMA1 Overview

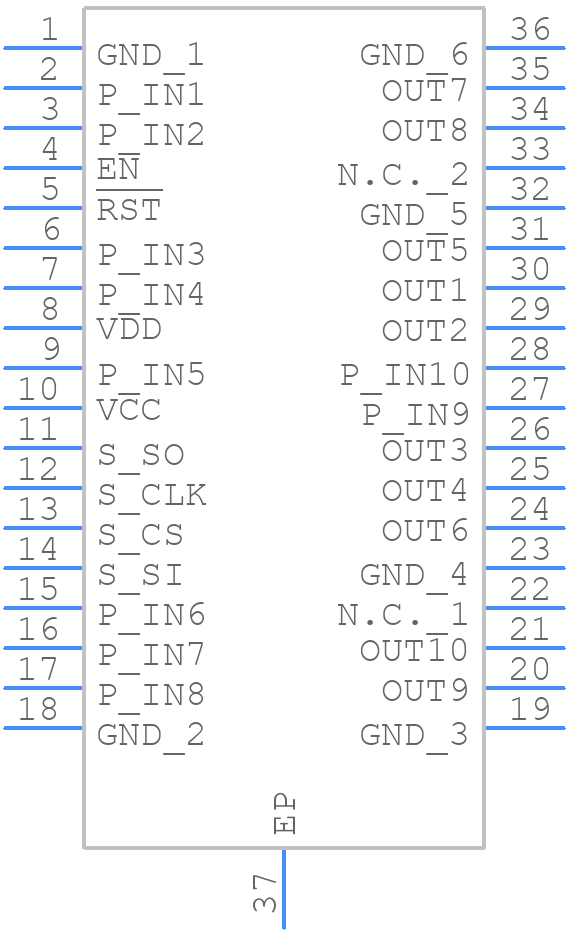

Use the download button to access the TLE8110EDXUMA1 schematic symbol, PCB footprint, and 3D model.
