Technical Content
Part Image

TLE82092SAAUMA1 - Infineon

Description: Infineon TLE82092SAAUMA1, BLDC Motor Driver IC, 28 V 8.6A 20-Pin, DSO-20-65

Download TLE82092SAAUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

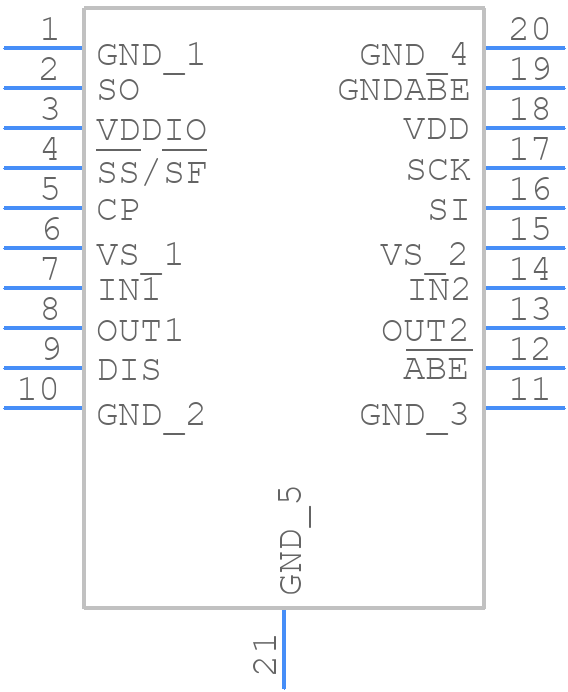

Symbol
TLE82092SAAUMA1 - Infineon - PCB symbol
click to zoom

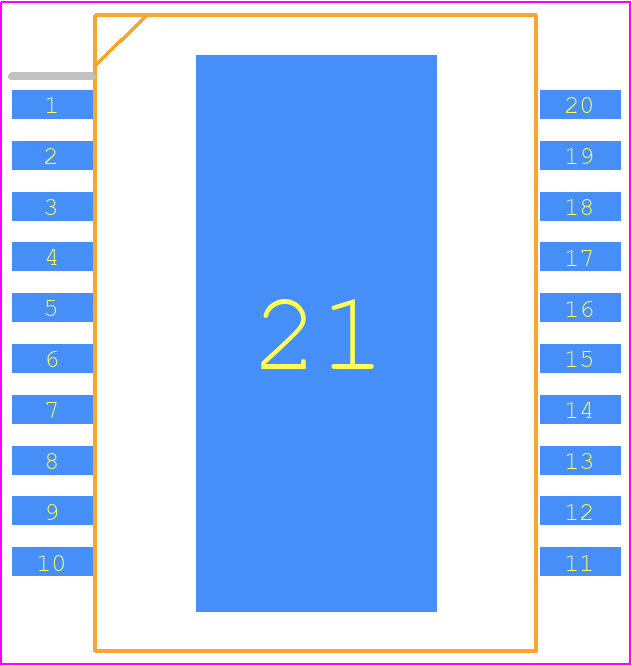

PCB Footprints
TLE82092SAAUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE82092SAAUMA1
click to zoom
3D Models
TLE82092SAAUMA1 - Infineon - 3D model - Small Outline Packages - TLE82092SAAUMA1
click to zoom

TLE82092SAAUMA1 Details

  • Manufacturer Part Number:

    TLE82092SAAUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    8.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

TLE82092SAAUMA1 Frequently Asked Questions (FAQs)

  • A good thermal design should be used to ensure optimal heat dissipation. A minimum of 2oz copper thickness is recommended, and thermal vias should be placed under the device to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable for the output stage, and consider using a common-mode choke or a ferrite bead to filter out high-frequency noise. Additionally, ensure proper grounding and decoupling of the device.
  • The maximum allowed voltage on the input pins is 35V, but it's recommended to keep it below 30V to ensure reliable operation and prevent damage to the device.
  • Use an oscilloscope to monitor the input and output signals, and check for proper power supply voltage and decoupling. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB.
  • The TLE82092SAAUMA1 is rated for operation up to 150°C, but it's recommended to derate the device for reliable operation above 125°C. Ensure proper thermal design and heat dissipation to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE82092SAAUMA1 Overview

Use the download button to access the TLE82092SAAUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE82, or try a keyword search, such as Peripheral Drivers
