A good PCB layout for the TLE8366EV involves keeping the high-current paths short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of external components for the TLE8366EV depends on the specific application requirements. For example, the output capacitor value depends on the output voltage and current requirements, while the input capacitor value depends on the input voltage and current ripple requirements. Refer to the datasheet and application notes for guidance on selecting the right components.
The TLE8366EV has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a heat sink or a thermal pad, and to keep the device within the recommended operating temperature range. Additionally, ensure good airflow and avoid blocking the airflow around the device.
To troubleshoot issues with the TLE8366EV, start by checking the input voltage, output voltage, and current levels. Verify that the external components are correctly selected and placed. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes, or contact Infineon's technical support.
Yes, the TLE8366EV is a high-frequency device, and EMI and EMC considerations are crucial. Ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference. Use shielding, filtering, and grounding techniques to reduce EMI emissions and improve immunity. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE8366EV Overview

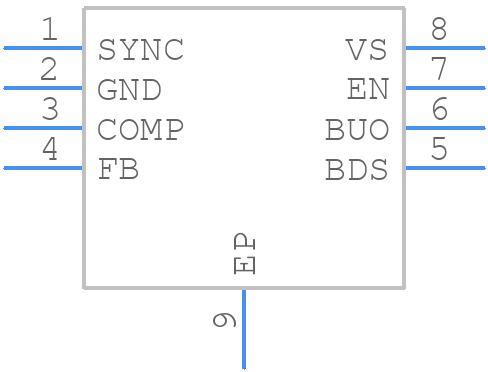

Use the download button to access the TLE8366EV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE83,
or try a keyword search, such as Switching Regulator or Controllers
