A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components.
To ensure EMC, use a shielded cable, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference.
The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 36V to ensure reliable operation.
To troubleshoot issues, check the power supply voltage, verify the input signals, and use an oscilloscope to monitor the output signals. Also, ensure that the device is properly soldered and the PCB layout is correct.
Yes, the TLE8366EV50XUMA1 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. Ensure proper cooling and thermal management to maintain optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE8366EV50XUMA1 Overview

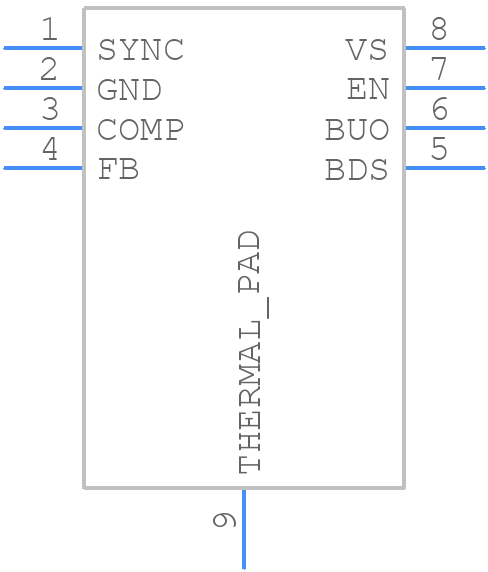

Use the download button to access the TLE8366EV50XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE83,
or try a keyword search, such as Switching Regulator or Controllers
