TLE88881QKXUMA1 Frequently Asked Questions (FAQs)

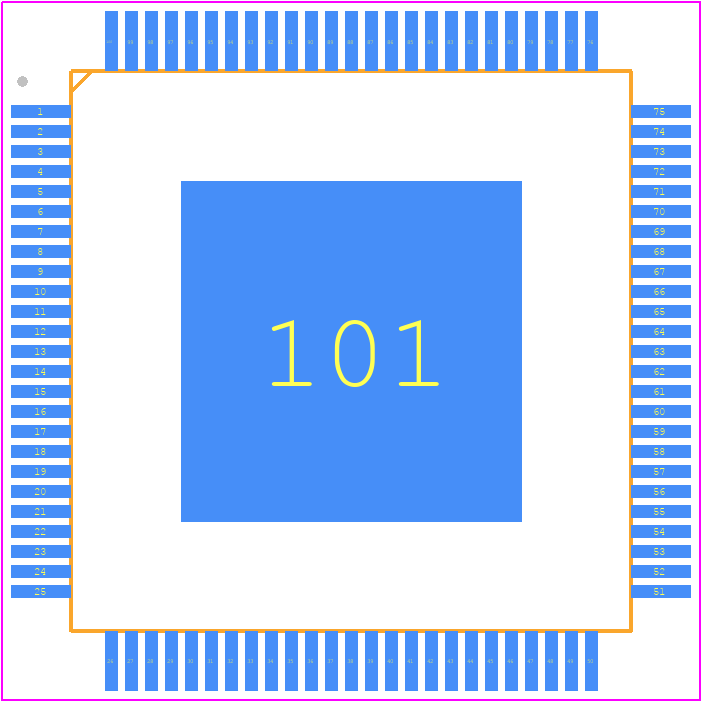

• What is the recommended PCB layout for the TLE88881QKXUMA1?
  Infineon provides a recommended PCB layout in the application note AN2018-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
• How do I handle the thermal management of the TLE88881QKXUMA1?
  The TLE88881QKXUMA1 has a thermal pad that must be connected to a heat sink or a thermal vias to dissipate heat. The application note AN2018-01 provides guidelines for thermal management, including thermal pad connection and heat sink design.
• What is the maximum operating temperature range for the TLE88881QKXUMA1?
  The TLE88881QKXUMA1 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. The device should be designed to operate within the recommended temperature range to ensure reliability and performance.
• How do I program the TLE88881QKXUMA1?
  The TLE88881QKXUMA1 can be programmed using the Infineon Toolbox, which provides a graphical user interface for configuring the device's registers and settings. The application note AN2018-01 provides a step-by-step guide for programming the device.
• What is the recommended power supply decoupling for the TLE88881QKXUMA1?
  Infineon recommends using a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the device's power supply pins, to ensure stable operation and reduce noise.
