Technical Content
Part Image

TLE9104SHXUMA1 - Infineon

Description: INFINEON - TLE9104SHXUMA1 - POWER LOAD SW, AEC-Q100, 5.5V, SOIC-20

Download TLE9104SHXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

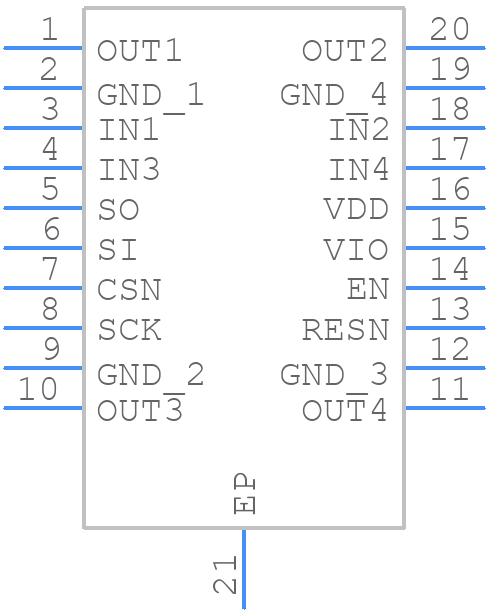

Symbol
TLE9104SHXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE9104SHXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE9104SHXUMA1+
click to zoom
3D Models
TLE9104SHXUMA1 - Infineon - 3D model - Small Outline Packages - TLE9104SHXUMA1+
click to zoom

TLE9104SHXUMA1 Details

  • Manufacturer Part Number:

    TLE9104SHXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-20

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)

TLE9104SHXUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE9104SHXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
  • The TLE9104SHXUMA1 can be configured using the Infineon myInfineon online configurator tool, which provides a graphical user interface to select the desired motor control parameters and generate the corresponding configuration code.
  • The TLE9104SHXUMA1 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
  • Infineon provides a troubleshooting guide for the TLE9104SHXUMA1, which includes a list of common issues, their possible causes, and recommended solutions. Additionally, engineers can contact Infineon's technical support team for further assistance.
  • Yes, the TLE9104SHXUMA1 is designed to meet the requirements of automotive safety standards such as ISO 26262 and IEC 61508, and is suitable for use in safety-critical automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE9104SHXUMA1 Overview

Use the download button to access the TLE9104SHXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE91, or try a keyword search, such as Peripheral Drivers
