Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The TLE92108231QXXUMA1 is a highly configurable device, and the configuration depends on the specific motor type and application. Infineon provides a configuration tool, the 'Motor Control Configurator', which helps to generate the necessary configuration code for the device.
The device has a high power density, and thermal management is crucial to ensure reliable operation. Infineon recommends using a heat sink, thermal interface material, and a well-designed PCB layout to dissipate heat effectively.
Infineon provides a troubleshooting guide in the application note AN2019-02, which covers common issues, error codes, and debugging techniques to help identify and resolve problems with the device.
The device has built-in safety features, such as overcurrent protection and thermal shutdown. Additionally, Infineon recommends implementing security measures, such as secure boot and encryption, to protect the device and the system from unauthorized access and tampering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE92108231QXXUMA1 Overview

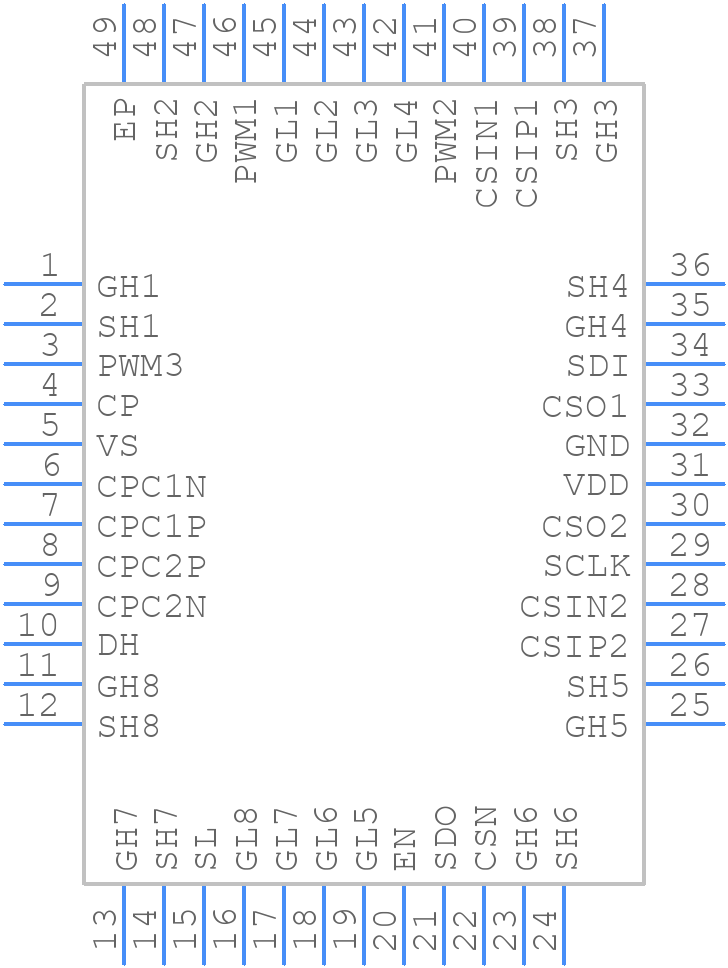

Use the download button to access the TLE92108231QXXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92,
or try a keyword search, such as MOSFET Drivers
