TLE92108232QXXUMA1 - Infineon

Description: Gate Drivers MOTOR CONTROL BRIDGES

Download TLE92108232QXXUMA1 Model

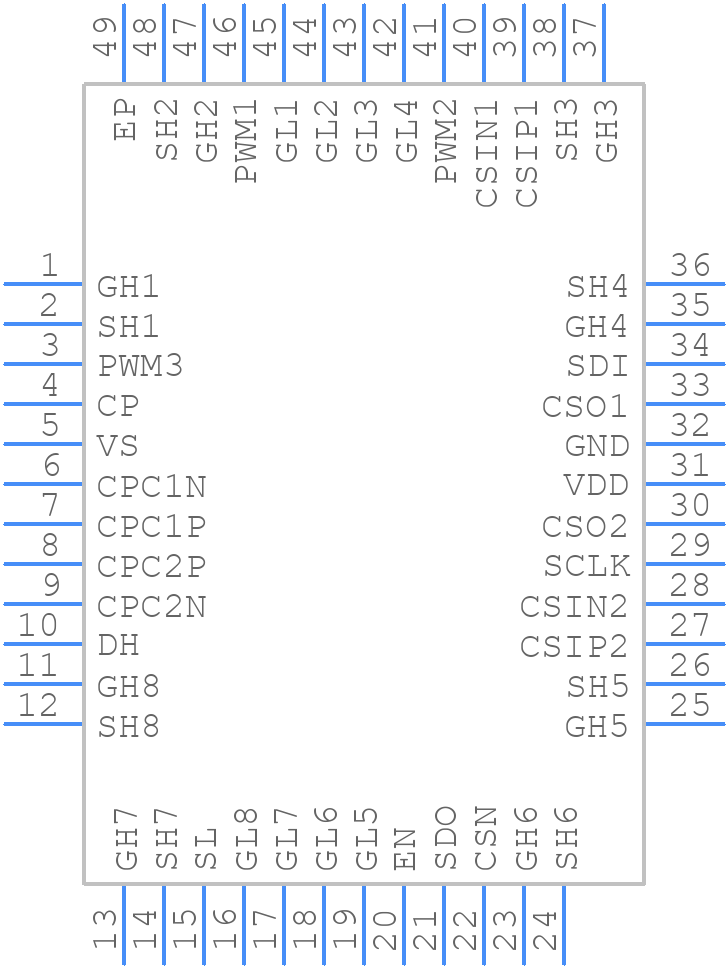

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE92108232QXXUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-48_2020-1
click to zoom
3D Models
TLE92108232QXXUMA1 - Infineon  - 3D model - Quad Flat No-Lead - PG-VQFN-48_2020-1
click to zoom

TLE92108232QXXUMA1 Details

  • Manufacturer Part Number:

    TLE92108232QXXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • Country Of Origin:

    Germany, Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.3SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    19.2 µs

  • Turn-on Time:

    80 µs

  • Width:

    7 mm

TLE92108232QXXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management.
  • The TLE92108232QXXUMA1 is a highly configurable device. Infineon provides a configuration tool, the 'TLE9210 Configurator', which allows users to generate a configuration file based on their specific application requirements.
  • The TLE92108232QXXUMA1 is specified to operate from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and use case. Consult the datasheet and application notes for more information.
  • Infineon provides a troubleshooting guide in the application note AN2019-02, which covers common issues and their solutions. Additionally, the device has built-in diagnostic capabilities that can be accessed through the SPI interface.
  • The recommended power-up sequence is to first apply the supply voltage (VCC) and then the input voltage (VIN). The device has a built-in power-on reset circuit that ensures proper initialization.
