TLE9221SX - Infineon

Description: Interface - Specialized TRANSCEIVER

Download TLE9221SX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

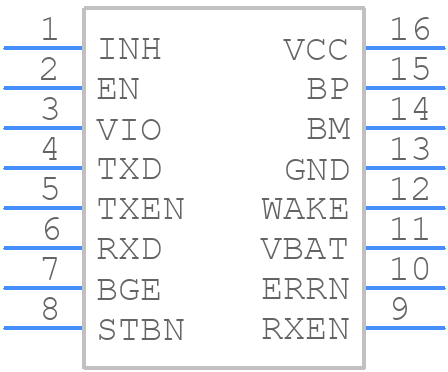

TLE9221SX - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE9221SX - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-SSOP-16
click to zoom
3D Models
TLE9221SX - Infineon - 3D model - Small Outline Packages - PG-SSOP-16
click to zoom

TLE9221SX Details

  • Manufacturer Part Number:

    TLE9221SX

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    FLEXRAY TRANSCEIVER

  • Terminal Finish:

    Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TLE9221SX Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer PCB with a thermal via array underneath the IC to dissipate heat efficiently. A minimum of 10 thermal vias with a diameter of 0.3 mm to 0.5 mm is recommended.
  • The input capacitor should be selected based on the input voltage ripple, output current, and operating frequency. A minimum capacitance of 10 μF with a voltage rating of 25 V or higher is recommended.
  • The maximum allowed voltage drop across the sense resistor is 100 mV. Exceeding this value may affect the accuracy of the current sensing.
  • Yes, the TLE9221SX is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and derate the device's specifications accordingly.
  • Check the input voltage, output voltage, and current sensing resistors for correct connections and values. Verify the PCB layout and thermal design. Use an oscilloscope to check the switching node and output voltage waveforms for anomalies.
