TLE9250VSJXUMA1 - Infineon

Description: CAN Interface IC TRANSCEIVER

Download TLE9250VSJXUMA1 Model

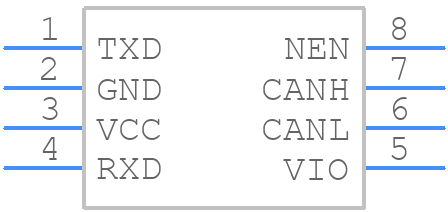

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE9250VSJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TLE9250VSJXUMA1
click to zoom
3D Models
TLE9250VSJXUMA1 - Infineon  - 3D model - Small Outline Packages - TLE9250VSJXUMA1
click to zoom

TLE9250VSJXUMA1 Details

  • Manufacturer Part Number:

    TLE9250VSJXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DSO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.94 mm

TLE9250VSJXUMA1 Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the high-current paths short and wide, and to use a solid ground plane to reduce EMI. Additionally, it is recommended to place the device near the power source and to use a common mode choke to filter the output.
  • The TLE9250VSJXUMA1 has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal via to ensure proper cooling. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
  • The maximum allowed voltage on the input pins of the TLE9250VSJXUMA1 is 40V, but it is recommended to keep the input voltage below 35V to ensure reliable operation.
  • To troubleshoot issues with the TLE9250VSJXUMA1, check the input voltage, output voltage, and current consumption. Use an oscilloscope to check for any unusual voltage or current waveforms. Also, check the PCB layout and ensure that the device is properly cooled.
  • Yes, the TLE9250VSJXUMA1 is AEC-Q100 qualified, which means it is suitable for use in automotive applications. However, it is recommended to check the specific requirements of the application and ensure that the device meets those requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE9250VSJXUMA1 Overview

Use the download button to access the TLE9250VSJXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92, or try a keyword search, such as Network Interfaces
