Part Image

TLE9251VSJXUMA1 - Infineon

Description: CAN Interface IC TRANSCEIVER

Download TLE9251VSJXUMA1 Model

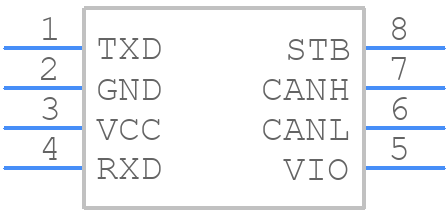

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE9251VSJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8_4
click to zoom
3D Models
TLE9251VSJXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-8_4
click to zoom

TLE9251VSJXUMA1 Details

  • Manufacturer Part Number:

    TLE9251VSJXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DSO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.94 mm

TLE9251VSJXUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLE9251VSJXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
  • To ensure proper cooling, the TLE9251VSJUMA1 should be mounted on a heat sink with a thermal resistance of ≤ 10 K/W. Additionally, the device should be placed in a well-ventilated area, and the PCB should be designed to allow for good airflow.
  • The maximum allowed voltage on the input pins of the TLE9251VSJXUMA1 is 40V, but it's recommended to keep the input voltage below 35V to ensure reliable operation.
  • To troubleshoot issues with the TLE9251VSJXUMA1, start by checking the power supply voltage, input signals, and output loads. Use an oscilloscope to monitor the device's behavior and check for any signs of overheating or electrical overstress.
  • The TLE9251VSJXUMA1 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to use the device within its specified operating temperature range of -40°C to 125°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE9251VSJXUMA1 Overview

Use the download button to access the TLE9251VSJXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92, or try a keyword search, such as Network Interfaces
