Technical Content
Part Image

TLE9254SK - Infineon

Description: High speed dual CAN transceiver with bus wake-up

Download TLE9254SK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

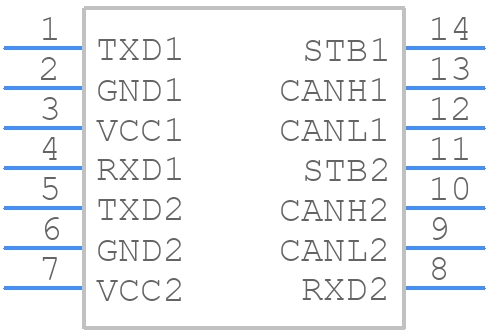

TLE9254SK - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE9254SK - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14 _2021
click to zoom
3D Models
TLE9254SK - Infineon - 3D model - Small Outline Packages - PG-DSO-14 _2021
click to zoom

TLE9254SK Details

  • Manufacturer Part Number:

    TLE9254SK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2A

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Telecom IC Type:

    SUPPORT CIRCUIT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE9254SK Overview

Use the download button to access the TLE9254SK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92, or try a keyword search, such as Network Interfaces
