- Stock & Prices $ Price & Stock for TLE9254SKXUMA1
- Part Number TLE9254SKXUMA1
- Manufacturer Infineon
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PG-DSO-14
- Released Date Dec 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLE9254SKXUMA1 Details
-
Manufacturer Part Number:
TLE9254SKXUMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
0
-
JESD-609 Code:
e4
-
Moisture Sensitivity Level:
2A
-
Telecom IC Type:
SUPPORT CIRCUIT
-
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
TLE9254SKXUMA1 Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
Infineon provides a configuration tool, the TLE9254 Configurator, which allows designers to customize the device's settings for their specific application. The tool generates a configuration file that can be used to program the device.
-
The maximum junction temperature (Tj) for the TLE9254SKXUMA1 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
-
While the TLE9254SKXUMA1 is primarily designed for automotive applications, it can be used in other applications that require a high-performance, low-power, and high-temperature tolerant power management IC. However, designers should ensure that the device meets the specific requirements of their application.
-
Infineon provides a troubleshooting guide in the application note AN2019-12, which covers common issues and their solutions. Additionally, designers can contact Infineon's technical support team for further assistance.
Trust Checks
Community Provided
System Verified
Community Approved
TLE9254SKXUMA1 Overview

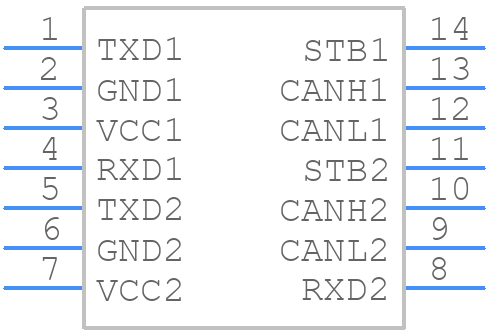

Use the download button to access the TLE9254SKXUMA1 schematic symbol, PCB footprint, and 3D model.
