Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
Infineon provides a configuration tool, the 'TLE9263 Configurator', which allows engineers to customize the device's settings for their specific application. The tool generates a configuration file that can be loaded into the device.
The maximum junction temperature (Tj) for the TLE92633BQXV33XUMA2 is 150°C. However, it's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
While the TLE92633BQXV33XUMA2 is primarily designed for automotive applications, it can be used in other applications that require a high-performance, low-power, and highly integrated power management IC. However, engineers should ensure that the device meets the specific requirements of their application.
The typical start-up time for the TLE92633BQXV33XUMA2 is around 10 ms. However, this time can vary depending on the specific configuration, input voltage, and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE92633BQXV33XUMA2 Overview

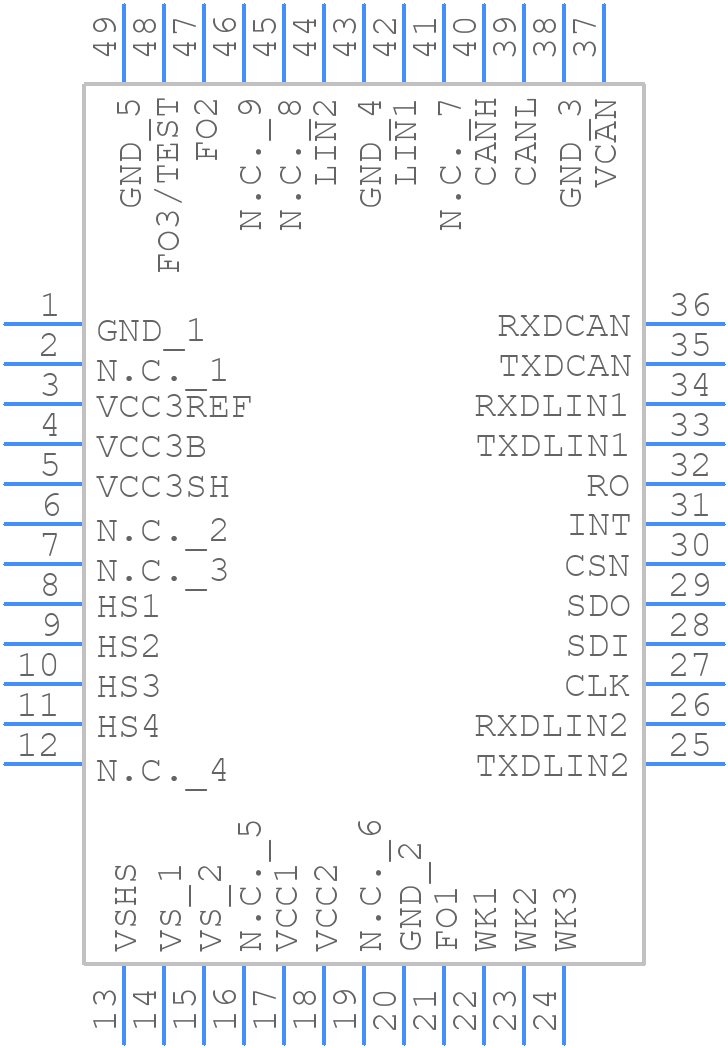

Use the download button to access the TLE92633BQXV33XUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE92,
or try a keyword search, such as Network Interfaces
