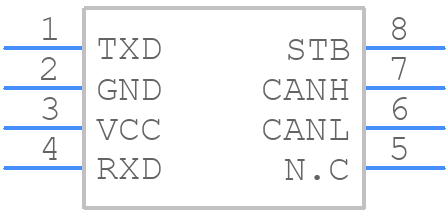

TLE9371SJXTMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE9371SJXTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8,.----
click to zoom
3D Models
TLE9371SJXTMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-8,.----
click to zoom

TLE9371SJXTMA1 Details

  • Manufacturer Part Number:

    TLE9371SJXTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    48 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD SIC TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.93 mm
