TLF11251LDXUMA1 - Infineon

Description: Gate Drivers OPTIREG LINEAR

Download TLF11251LDXUMA1 Model

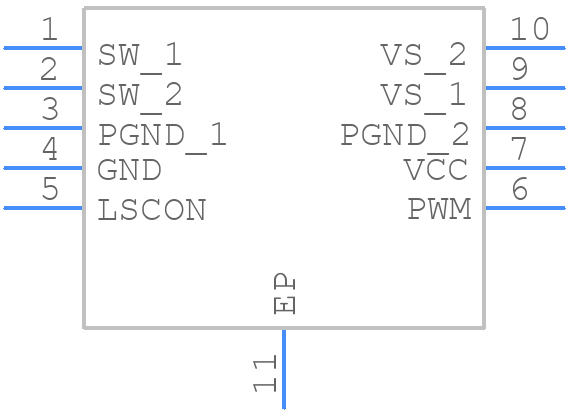

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLF11251LDXUMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - TLF11251LDXUMA1
click to zoom
3D Models
TLF11251LDXUMA1 - Infineon  - 3D model - Small Outline No-lead - TLF11251LDXUMA1
click to zoom

TLF11251LDXUMA1 Details

  • Manufacturer Part Number:

    TLF11251LDXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSON-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2020-01-23

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3.3 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4.4 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.17 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    7 V

  • Supply Voltage-Min:

    2.35 V

  • Supply Voltage1-Max:

    7 V

  • Supply Voltage1-Min:

    3.5 V

  • Supply Voltage1-Nom:

    5.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    3.3 mm

TLF11251LDXUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range of -40°C to 150°C. Also, ensure the input voltage (VIN) is within the recommended range of 4.5V to 18V.
  • A ceramic capacitor with a value of 10uF to 22uF and an X7R or X5R dielectric is recommended. The capacitor should be placed as close to the VIN pin as possible.
  • Use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input lines. Also, ensure the device is placed away from other noise-sensitive components.
  • A ceramic capacitor with a value of 10uF to 22uF and an X7R or X5R dielectric is recommended. The capacitor should be placed as close to the VOUT pin as possible.
